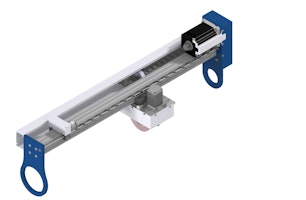

Motorized Linear & Dual-Rotary Drive for Heavy-Duty Sample Transporter

Price on Request

All-Axis Motorization Unit for Heavy-Duty Sample Transporters.

Questions? Connect with an expert

    • Fully Motorized Motion: Enables both linear and dual-axis rotational movement of the magnetic coupling.
    • Enables Remote Operation – Allows for control of various tools from any workstation.
    • High Precision – Ensures exceptional accuracy.
    • Controller Compatible – Works with standard stepper motor controllers (not included).

    The DRVRMOTLRR is a high-precision, stepper motor-driven linear and dual-rotary drive designed for seamless remote operation. Featuring two independently rotatable axes, it enables fully motorized dual-axis rotation and linear movement of the magnetic coupling, allowing precise control of various tools from any workstation.

    Engineered for automated, repeatable motion, the DRVRMOTLRR delivers exceptional accuracy, making it ideal for handling delicate samples with precision.

    Compatible with standard stepper motor controllers (not included), it supports programmable and automated movement for a wide range of applications.

    For bake-out procedures, the motorized drive system can be easily detached.

    Note: This motorized drive cannot be retrofitted onto existing systems and must be ordered together with a Dual-Shaft Sample Transporter.

  • General

    • Outer length: 0mm – 1640mm (Standard: 0mm)
    • Accuracy: ±0.1mm / 300mm
    • Toothed belt transmission: 1:1 ratio
    • Linear drive spindle pitch: 3mm
    • Limit switches:
      • One adjustable end switch (front end)
      • One fixed end switch (rear end, 0mm)

    • Max rotation speed: 60°/s
    • Min step size: (1.8°/64)/100 ~ 0.0003°
    • Worm gear transmission: 1:100
    • Adjustable limit switches: Two (0°–360°)


    Stepper Motor Linear Drive

    • Voltage: 4.8VDC
    • Amps/Phase: 2.0A
    • Resistance/Phase (single): 2.4Ω ±10%
    • Holding Torque: 1.32 Nm
    • Step Angle: 1.8° ±5%
    • Controller: Not included


    Stepper Motor Rotary Drives (2 pcs.)

    • Voltage: 4.08VDC
    • Amps/Phase: 1.2A
    • Resistance/Phase: 3.4Ω ±15%
    • Holding Torque: 0.23 Nm (without worm gear unit)
    • Step Angle: 1.8° ±5%
    • Controller: Not included
