HSASOM40(PBN)-YYYY

PBN Heating Station for Flag Style Plates

From

16’270.00 CHF

Fully configured, ready-to-use boralectric heating stage.

Questions? Connect with an expertBuy at UHV store

  • The standard length heating stage is available for direct purchase on the UHVstore.

    The distance from mounting flange surface to the center of the sample plate (Parameter Y) can be customized.

    Product CodeRetracted Length Y
    HSASOM40(PBN)-YYYYmin. 134mm / max. 400mm; standard 134mm

    If you need assistance with identifying the right choice for your application, connect with Ferrovac Sales for expert advice.

    Contact

    • High Temperature Capability: Reaches up to 1000°C for demanding applications.
    • PBN Heater Assembly: Utilizes a Boralectric heater for uniform and efficient heating

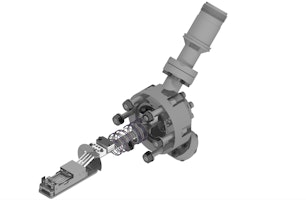

    The HSASOM40(PBN) Heating Station is a fully configured, ready-to-use solution for heating and annealing of flag style samples in ultra-high vacuum (UHV) environments. This assembly features a PBN (pyrolytic boron nitride) sample heating stage designed for flag style sample holders.

    The entire heating station comes pre-mounted on a DN40CF (2.75") flange, including all necessary wiring and electrical feedthroughs, providing a ready-to-use system.

    This heating station delivers precise temperature control up to 1000°C*, combined with adjustable linear and rotational positioning, making it ideal for advanced UHV applications.

    *Note: Number based on internal tests. Actual max. expected temperature heavily depends on system set-up.

    • Mounting Flange: DN40CF (2.75")
    • Distance from Flange Surface to Sample Plate Center: Customizable, see Product Configuration above.

    • Mounted Sample Plate Receiver: PBN Heating Unit for Flag Style Plates (HSOMPBN50)
      • Boralectric Heater: Pyrolytic boron nitride, pyrolytic graphite
      • Maximum Power: 120W (40V, 3.0A at ~1000°C)
    • Sample Receiver Options:
      • Electrically insulated (default)
      • Sample grounded to body

    • Air-Side Cable:
      • Length: 6 meters
      • Side A: 4-pin industry-standard MS air-side connector, two K-type thermocouple pairs
      • Side B: K-type (chromel/alumel) miniature thermocouple connector, 3x safety 4mm banana plugs (red, black, yellow)
    • Power Supply: Not included
      • Recommended: 150W, Voltage Range: 0-50V, Current Range: 0-5A

    • Controller: Not included
    • Packaging: Included
