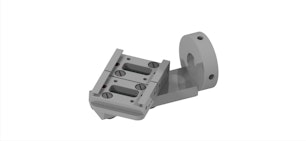

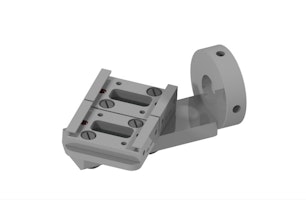

Revolving Sample Carrier for 2 Flag Style Sample Plates

From

1’800.00 CHF

Manually activated rotating sample carrier.

The revolving sample carrier transports and stores two Flag Style Sample Plates.
Consisting of two drawer style receivers that are accessible from opposite sides on a rotating platform, this is perfect in applications where two samples need to be accessed right after one another.
A spring loaded snap-in device stops the platform at predefined angular steps of 45 degrees.
The platform is rotated using a wobblestick.
- Carrying Capacity: 2 Flag Style Sample Plates
- Receiver Orientation: 2 x 1 receiver at 180°
- Rotation Steps: 45° snap-in steps
- Rotation Activation: Manually rotated by pressing on the caroussel with a wobblestick.
- Bakeout Temperature: Max. 200°C
- Mounting Compatibility: Sample Transporters, Heavy-Duty Sample Transporters
