RECOMSTACKP(__H__S)_
In-Line Orthogonal Storage Stack
Price on Request
Customizable stack of sample receptacles for flag style sample plates, orthagonally mounted.
This storage stack can be customized by receptacle count, spacer size and slot labelling.
Receptacles with differently sized spacers can be fit on the same stack.
Viewing enlarged image:
This stack type is mounted orthagonally to the manipulator axis, with in-line sample holder access.
Optional slot labels are available.Product Code Amount of Slots Spacer Options Additional Options Price RECOMSTACKP(__H__S) Limited only by overall stack length: Max. 250mm 2mm - 20mm (in 1mm steps) None Contact Ferrovac Sales RECOMSTACKP(__H__S)L Limited only by overall stack length: Max. 250mm 2mm - 20mm (in 1mm steps) Labelled Slots: Two labels per slot, digits 0-9. (Standard format: 0-0, 0-1, 0-2, ...) Contact Ferrovac Sales We'd be glad to discuss the best option for your specific application.
Contact
Connect with Ferrovac sales for expert support.Design your advanced sample handling solution with the RECOMSTACKO(05H04S), an In-line Orthogonal Storage Stack. This stack is uniquely designed with an M4 threaded adapter enabling versatile sample manipulation. Customize your storage by specifying your slot count and spacing, accommodating SHOM flag-style sample plates.

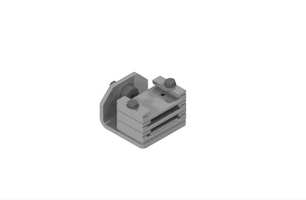

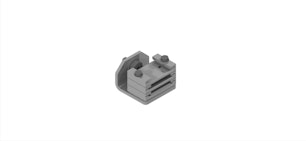

The example shown has 3 slots with 2mm spacing.
- Mounting Thread: M4
- Housing Material: Stainless Steel
- Adapter Type: Orthogonally mounted (90-degree, X and Z-Axis)
- Sample Plate Compatibility: Flag Style Sample Plates
- Number of Slots: Customizable, See Product Configuration above
- Spacer Size: Customizable, See Product Configuration above
- Optional Labelling: Standard (see below), custom numbering available upon request.
- 0 [Slot 4] 3
- 0 [Slot 3] 2
- 0 [Slot 2] 1
- 0 [Slot 1] 0
└─┬─┘
[M4]
