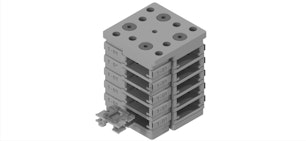

RECOMSTAGE(_x__H__S)N
Storage Stage, Labelled
Price on Request
Customizable stage of multiple sample storage stacks for flag style sample plates.
This sample parking stages features multiple stacks of receptacles. It can be customized by stack and receptacle count, spacer size, and labelling.
Receptacles with differently sized spacers can be fit on the same stack, but each stack in the stage must be comprised of the same combination of slots.

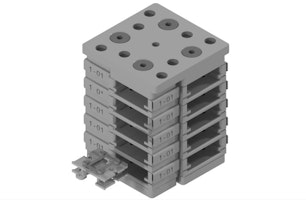

Viewing enlarged image:
Product Code Amount of Stacks Amount of Slots Spacer Options Additional Options Price RECOMSTAGE(_x__H__S)N Standard: 4 Limited only by overall stack length: Max. 250mm 2mm - 20mm (in 1mm steps) Labelled Slots: One label per slot, Format X-XX (Standard: 0-00, 0-01, 0-02, ... | 1-00, 1-01, 1-02, ...) Contact Ferrovac Sales This stage can be customized to your specific application requirements
Contact
Connect with Ferrovac sales for expert support.The RECOMSTAGE is a versatile stage designed for high-volume storage and transfer of SHOM flag-style sample plates. Customize your storage by specifying your slot count and spacing, from tightly packed to generous separation. The stage is engineered for compatibility with our standard single shaft manipulators, with suitability dependent on stage orientation and manipulator transfer length.
- Mounting Thread: M4 (top and bottom)
- Housing Material: Stainless Steel
- Adapter Type: Standard: Straight adapter for 4 storage stacks.
- Sample Plate Compatibility: Flag Style Sample Plates
- Number of Slots: Customizable, See Product Configuration above
- Spacer Size: Customizable, See Product Configuration above
- Optional Labelling: Standard (see below), custom numbering available upon request.
- 0 - 03 [Slot 4] | 1 - 03 [Slot 4] | 2 - 03 [Slot 4] | 3 - 03 [Slot 4]
- 0 - 02 [Slot 3] | 1 - 02 [Slot 3] | 2 - 02 [Slot 3] | 3 - 02 [Slot 3]
- 0 - 01 [Slot 2] | 1 - 01 [Slot 2] | 2 - 01 [Slot 2] | 3 - 01 [Slot 2]
- 0 - 00 [Slot 1] | 1 - 00 [Slot 1] | 2 - 00 [Slot 1] | 3 - 00 [Slot 1]
└─┬─┘
[M4]
