Labelled Sample Storage Stack

• Product Configurations

  This storage stack can be customized by receptacle count, spacer size and slot labelling.
  Receptacles with differently sized spacers can be fit on the same stack.



  Viewing enlarged image:


  This stack type is mounted in-line with the manipulator and features customizable labelled slots.

  Product Code	Receptacle Options	Spacer Options	Label Options	Price
  RECOMSTACK(__H__S)L	Limited only by overall stack length: Max. 250mm	2mm - 20mm (in 1mm steps)	Two labels per slot, digits 0-9. (Standard format: 0-0, 0-1, 0-2, ...)	Contact Ferrovac Sales

  We'd be glad to discuss the best option for your specific application.
  Connect with Ferrovac sales for expert support.

  Contact

• Description

  A versatile, customisable stack of labelled receptacles for flag-style sample plates, featuring a standard M4 threaded adapter on the bottom for easy mounting to the transfer arm.

  Specify your slot count and spacing, from tightly packed to generous separation (e.g., 4 slots, 2mm spacing). Each receptacle features two labels, customisable with numbers from 0-9.

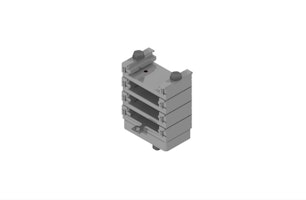

  The pictured example has 4 slots with 2mm spacing.

• Specifications

  • Mounting Thread: M4
  • Housing Material: Stainless Steel
  • Adapter Type: Bottom Mounted, Straight
  • Sample Plate Compatibility: Flag Style Sample Plates
  • Number of Slots: Customizable, See Product Configuration above
  • Spacer Size: Customizable, See Product Configuration above
  • Labelling: Standard (see below), custom numbering available upon request.
    • 0 [Slot 4] 3
    • 0 [Slot 3] 2
    • 0 [Slot 2] 1
    • 0 [Slot 1] 0
        └─┬─┘
           [M4]

Downloads

Downloads

• RECOMSTACK(XXHYYS)K | Rev F | 2D(pdf)
