Orthogonal Storage Stack

• Product Configurations

  This storage stack can be customized by receptacle count, spacer size and slot labelling.
  Receptacles with differently sized spacers can be fit on the same stack.



  Viewing enlarged image:


  This stack type is mounted orthagonally to the manipulator axis.
  Optional slot labels are available.

  Product Code	Amount of Slots	Spacer Options	Additional Options	Price
  RECOMSTACKO(__H__S)	Limited only by overall stack length: Max. 250mm	2mm - 20mm (in 1mm steps)	None	Contact Ferrovac Sales
  RECOMSTACKO(__H__S)L	Limited only by overall stack length: Max. 250mm	2mm - 20mm (in 1mm steps)	Labelled Slots: Two labels per slot, digits 0-9. (Standard format: 0-0, 0-1, 0-2, ...)	Contact Ferrovac Sales

  We'd be glad to discuss the best option for your specific application.
  Connect with Ferrovac sales for expert support.

  Contact

• Description

  Design your specialized sample handling solution with the RECOMSTACKO(03H00S02H04S). This stack is uniquely designed with an orthogonally mounted M4 threaded adapter, allowing for specialized, side-oriented sample manipulation. Customize your storage by specifying your slot count and spacing, accommodating SHOM flag-style sample plates with variable spacing.

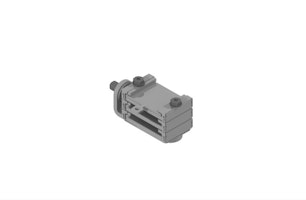

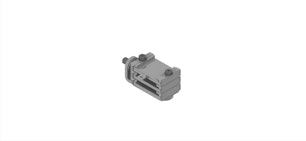

  The pictured example features 3 slots with no spacers and includes labels.

• Specifications

  • Mounting Thread: M4
  • Housing Material: Stainless Steel
  • Adapter Type: Orthogonally mounted (90-degree, Z-Axis)
  • Sample Plate Compatibility: Flag Style Sample Plates
  • Number of Slots: Customizable, See Product Configuration above
  • Spacer Size: Customizable, See Product Configuration above
  • Optional Labelling: Standard (see below), custom numbering available upon request.
    • 0 [Slot 4] 3
    • 0 [Slot 3] 2
    • 0 [Slot 2] 1
    • 0 [Slot 1] 0
        └─┬─┘
           [M4]

Downloads

Downloads

• RECOMSTACK(XXHYYS)K | Rev F | 2D(pdf)
