Inverted Sample Storage Stack

• Product Configurations

  This storage stack can be customized by receptacle count, spacer size and slot labelling.
  Receptacles with differently sized spacers can be fit on the same stack.



  Viewing enlarged image:


  This stack type is top-mounted and in line to the manipulator axis.
  Optional slot labels are available.

  Product Code	Amount of Slots	Spacer Options	Additional Options	Price
  RECOMSTACKO(__H__S)H	Limited only by overall stack length: Max. 250mm	2mm - 20mm (in 1mm steps)	None	Contact Ferrovac Sales
  RECOMSTACKO(__H__S)LH	Limited only by overall stack length: Max. 250mm	2mm - 20mm (in 1mm steps)	Labelled Slots: Two labels per slot, digits 0-9. (Standard format: 0-0, 0-1, 0-2, ...)	Contact Ferrovac Sales

  We'd be glad to discuss the best option for your specific application.
  Connect with Ferrovac sales for expert support.

  Contact

• Description

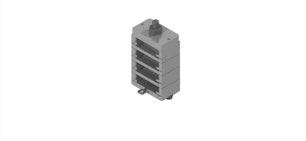

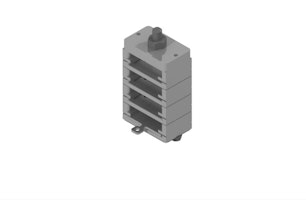

  A versatile, customisable stack of receptacles for flag-style sample plates, mounted inversely to the transfer arm with an M4 threaded adapter at the top isntead of the bottom of the stack.

  Customize your storage by specifying your slot count and spacing, from tightly packed to generous separation. The pictured example has 5 slots with 4mm spacing.

  As an optional upgrade, customisable labels for each receptacle are available. Contact Ferrovac sales with your special request.

• Specifications

  • Mounting Thread: M4
  • Housing Material: Stainless Steel
  • Adapter Type: Top-mounted, in-line adapter
  • Sample Plate Compatibility: Flag Style Sample Plates
  • Number of Slots: Customizable, See Product Configuration above
  • Spacer Size: Customizable, See Product Configuration above
  • Optional Labelling: Standard (see below), custom numbering available upon request.
    • 0 [Slot 4] 3
    • 0 [Slot 3] 2
    • 0 [Slot 2] 1
    • 0 [Slot 1] 0
        └─┬─┘
           [M4]

Downloads

Downloads

• RECOMSTACK(XXHYYS)K | Rev F | 2D(pdf)
