Straight Electrical Feedthrough Chamber (DN63 - DN40)

From

1’950.00 CHF

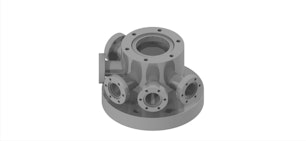

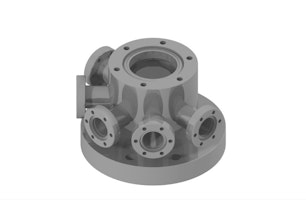

Multiport chamber for electrical feedthroughs with 1xDN63CF, 1xDN40CFT, 5xDN16CF.

This compact UHV chamber is designed for the installation of feedthroughs on XYZ manipulators.
It features a DN63CF mounting flange with an integrated interface for the manipulator support tube. The chamber includes five DN16CF ports for electrical feedthroughs.
The base flange incorporates threaded ring segments for securing the support tube of the manipulator. The chamber's top flange can accommodate a magnetically coupled rotary feedthrough.
- Base Flange: DN63CF with threaded ring segments for mounting the support tube
- Top Flange: DN40CF, tapped M6
- Feedthrough Ports:
  - 5 × DN16CF at 90° (orthogonal orientation)
- Material: Stainless steel 304L
- Surface Finish: Cleaned to UHV standards
- Leak Rate: Helium leak rate < 1 × 10⁻¹⁰ mbar·L/s
- Bakeout Temperature: Up to 250 °C
- Included Accessories:
  - Set of plate nuts for DN16CF flanges Set of copper gaskets

Boomerax Z Stage CF63
