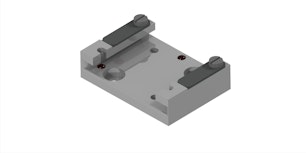

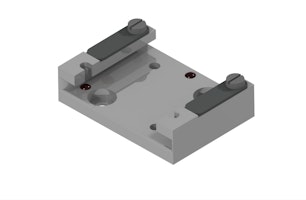

Three-Point Drawer Style Receiver for Flag Style Plates

From

990.00 CHF

Versatile sample receiver for flag style sample plates with auto-positioning.

Questions? Connect with an expert

  • This sample receiver is available in various materials.

    Product CodeMaterialPrice
    RECOM3S(ST)Stainless steel 1.4301 (AISI 304L)CHF 990
    RECOM3S(TI)TitaniumCHF 1100
    RECOM3S(MO)MolybdenumCHF 1650
    RECOM3S(CB)Copper berylliumCHF 1500
    RECOM3S(TA)TantalumCHF 3700

    If you need assistance with identifying the right choice for your application, connect with Ferrovac Sales for expert advice.

    Contact

    Important Recommendation:
    To prevent cold welding, we strongly advise against selecting the sample receiver and screws made from the same material, as this may cause the parts to fuse together in UHV environments, making disassembly impossible.

  • Ferrovac drawer style receivers provide a dependable and versatile solution as transfer end-stations or parking slots for flag style sample plates (SHOM3S).

    The Three-Point Drawer Style Receiver is designed to automatically position the sample holder plate in a highly precise and reproductible position. Utilizing three additional spring loaded ruby spheres, and three corresponding slits in the sample holder plate, the sample holder automatically slides into place and is centered within the receiver.

    • Precision Three-Point Contact: Ensures highly accurate and stable sample plate positioning.

    The receiver can be Dicronite™ dry lube coated to reduce sticking and seizing effects.

    • Sample Holder Compatibility: Flag Style Sample Plates
    • Retention Mechanism: Two ruby spheres and leaf springs.
    • Mounting Connection: 2x M2 threaded holes and 2x profile bores for M2 screws.
