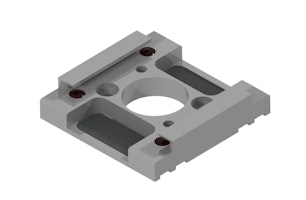

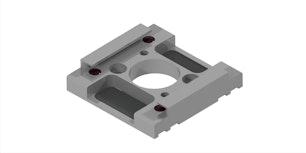

Drawer Style Receiver with Rear Access for Flag Style Plates

From

1’500.00 CHF

Receiver with a central through-hole enabling rear access for sample processing.

Questions? Connect with an expert

  • This sample receiver is available in various materials.

    Product CodeBody MaterialLeaf Spring MaterialPrice
    RECOMRA(ST)Stainless Steel 1.4301 Stainless Steel 1.4310CHF 1500
    RECOMRA(CU)Oxygen Free Copper (Cu-OFE)Copper Beryllium (CuBe2)CHF 1500
    RECOMRA(CB)Copper Beryllium (CuBe2)Copper Beryllium (CuBe2)CHF 1500
    RECOMRA(TI)TitaniumMolybdenumCHF 1500
    RECOMRA(MO)MolybdenumMolybdenumCHF 2300
    RECOMRA(TA)TantalumMolybdenumCHF 2400

    If you need assistance with identifying the right choice for your application, connect with Ferrovac Sales for expert advice.

    Contact

    Important Recommendation:
    To prevent cold welding, we strongly advise against selecting the sample receiver and screws made from the same material, as this may cause the parts to fuse together in UHV environments, making disassembly impossible.

  • This receiver features a central through-hole, enabling techniques such as electron bombardment, laser heating, and other processing methods. The sample plate is securely held in place by four precision ruby spheres, which are pressed against the plate's underside by an integrated leaf spring mechanism.

    Note: Not compatible with standard grabbers (GRABSHOM). Using pincers is recommended (PGWMS).

    • Rear View: Central ø9mm bore
    • Retention Mechanism: Four ruby spheres and leaf springs.
    • Mounting Connection: 2x M2 threaded holes and 2x profile bores for M2 screws.

Compatible Sample Holders
