TSRMBD-XXXX

Manual Belt Drive for Sample Transporters

From

4'900.00 CHF

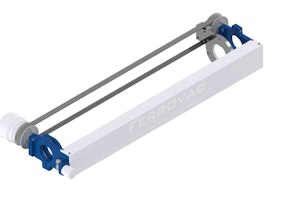

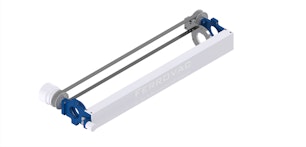

Belt drive with hand wheels for vertically mounted sample transporters.

Questions? Connect with an expert

  • Customization Range:

    Product CodeLength XCompatibilityPrice
    TSRMBD-XXXXmin. 94mm / max. 2584mmHeavy-Duty Sample Transporters4280.00 CHF

    This belt drive can be customized to the linear travel of the intendended sample transfer arm.
    The linear travel range of this belt drive is the Length X - 84mm.

    Connect with Ferrovac sales for expert advice.

    Contact

  • The TSRMBD is an accessory which can be used with the magnetically driven sample transporters. Wherever these are used in vertical orientation and have a certain length, the TSRMBD enables easy handling of linear as well as rotary motion from the front (bottom) of the transfer arm.

    For quick elevation over longer distances the belt can simply be pulled by hand.
    The hand wheels serve for precise linear and rotary positioning.

    Larger hand wheels for quicker rotation are available (Product Code: TSRMBD(BW)).

    Employment of an IVBR in-vacuum brake for the transfer arm is always recommended for safety reasons.

    • Compatibility: All Sample Transporters (RM40, RMJ40, RMD40, RMJG40, RMDG40, RMHS40)
    • Belt Drive: Includes toothed belt for linear drive
    • Manual Hand Wheels: Precision motion by small hand wheels
    • Bakeout Temperature: 200 °C max. (Belt must be removed)

Sample Transporter Compatibility
