Motorized Linear Drive for Sample Transporters

• Description

  • Fully Motorized Motion: Enables both linear and rotational movement of the magnetic coupling.
  • Enables Remote Operation – Allows for control of various tools from any workstation.
  • High Precision – Ensures exceptional accuracy.
  • Controller Compatible – Works with standard stepper motor controllers (not included).

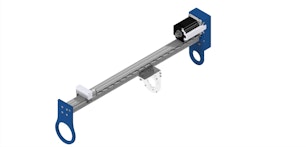

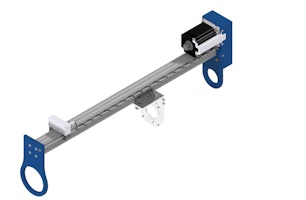

  The DRVRMOTL is a high-precision linear drive powered by a stepper motor. Designed for the Ferrovac Sample Transporter, it enables automated, repeatable linear motion with exceptional accuracy. This version of the motorized linear drive retains manual rotation of the magnetic coupling, allowing for precise sample handling when needed.

  With a standard stepper motor controller (not included), users can program the drive to meet specific operational requirements, providing flexibility for various applications.

  Detaching the transfer arm from the motorized linear drive for bake-out procedures is a very fast and easy task. This ensures convenient maintenance and increased system longevity.

  Note: This motorized drive cannot be retrofitted onto existing systems and must be ordered together with a Sample Transporter.

• Specifications

  General

  • Outer dimension: 95mm – 1366mm (Standard: 0mm)
  • Accuracy: ±0.1mm / 300mm (higher resolution available in encoded versions)
  • Toothed belt transmission for linear drive: 1:1 ratio
  • Linear drive spindle pitch: 3mm
  • Manual rotation capability (can be manually controlled or locked)
  • Linear unit includes:
    • One adjustable end switch (frontside)
    • One fixed end switch (backside, 0mm)




  Stepper Motor Linear Drive

  • Voltage: 8.8VDC
  • Amps/Phase: 2.0A
  • Resistance/Phase: 8.8Ω ±10%
  • Holding Torque: 1.32 Nm
  • Step Angle: 1.8° ±5%
  • Controller: Not included
