HSASOM40(PBNMD)-XXXX-YYYY

PBN Heating Station for Flag Style Plates with Linear Travel & Rotation

From

17’370.00 CHF

Fully configured, ready-to-use boralectric heating stage with motion capabilities.

Questions? Connect with an expert

  • This heating stage features a fully customizable manipulator, including linear travel and retracted length.

    Product CodeLinear Travel XRetracted Length Y
    HSASOM40(PBNMD)-XXXX-YYYYmin. 50mm / max. 450mmmin. 134mm / max. 400mm; standard 134mm

    If you need assistance with identifying the right choice for your application, connect with Ferrovac Sales for expert advice.

    Contact

    • Integrated Linear/Rotary Feedthrough: Offers precise linear and rotational sample positioning.
    • High Temperature Capability: Reaches up to 1000°C for demanding applications.
    • PBN Heater Assembly: Utilizes a Boralectric heater for uniform and efficient heating

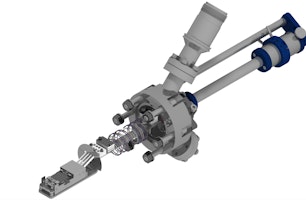

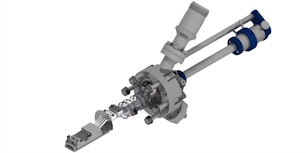

    The HSASOM40(PBNMD) Heating Station is a comprehensive UHV solution offering both linear travel and rotation capabilities. This assembly integrates a PBN (pyrolytic boron nitride) sample heating unit, tailored for flag style sample holders, with a Sample Transporter (MD16).

    The entire heating station comes pre-mounted on a DN40CF (2.75") flange, including all necessary wiring and electrical feedthroughs, providing a ready-to-use system.

    This heating station delivers precise temperature control up to 1000°C*, combined with adjustable linear and rotational positioning, making it ideal for advanced UHV applications.

    *Note: Number based on internal tests. Actual max. expected temperature heavily depends on system set-up.

    • Mounting Flange: DN40CF (2.75")
    • Distance from Flange Surface to Sample Plate Center: Customizable, see Product Configuration above.

    • Mounted Sample Plate Receiver: PBN Heating Unit for Flag Style Plates (HSOMPBN50)
      • Boralectric Heater: Pyrolytic boron nitride, pyrolytic graphite
      • Maximum Power: 120W (40V, 3.0A at ~1000°C)
    • Sample Receiver Options:
      • Electrically insulated (default)
      • Sample grounded to body

    • Installed Thermocouple: K-type (chromel/alumel)
    • Compatible Sample Plates: Flag Style Sample Plates, Not included
    • Linear/Rotary Feedthrough: Sample Transporter (MD16) with Support (TSMDH)

    • Air-Side Cable:
      • Length: 6 meters
      • Side A: 4-pin industry-standard MS air-side connector, two K-type thermocouple pairs
      • Side B: K-type (chromel/alumel) miniature thermocouple connector, 3x safety 4mm banana plugs (red, black, yellow)
    • Power Supply: Not included
      • Recommended: 150W, Voltage Range: 0-50V, Current Range: 0-5A

    • Controller: Not included
    • Packaging: Included
