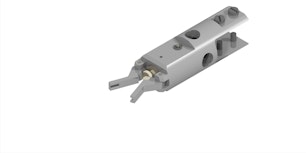

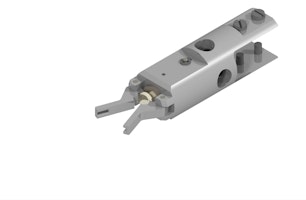

Pincer (for Heavy Duty Sample Transporter)

• Description

  • Broad Compatibility: Handles standard flag style plates (SHOM) from Omicron and SPECS, and integrates seamlessly with Dual-Shaft Heavy Duty Sample Transporters.
  • Easy Operation: Opening and closing the pincer is achieved with a simple quarter turn of the outer magnet assembly of the sample transporter.

  This pincer grip is designed for the safe and efficient transfer of standard flag style plates (SHOM), including Omicron and SPECS versions, over large distances. Compatible with all RMJ, RMD, RMJG, and RMDG dual shaft sample transporters, this pincer adds 45.0mm to the "Y" dimension of the main product.

• Specifications

  Plate Compatibility: Standard flag style plates (SHOM), including Omicron and SPECS versions

  Compatibility: Heavy Duty Sample Transporters

  Jaw Opening: 26° (symmetrical)

  Materials: Stainless steel 1.4301, CuBe2

  Sample Play: +/- 2° horizontal and vertical

  Max. Bakeout Temperature: 200 °C

  Dimensional Change: Increases retracted length of the main product by 45.0mm

Downloads

Downloads

• PGRMS(OMH) | Rev B | 2D(pdf)
• PGRMS(OMH) | Rev B | 3D(zip)
