PGRMWAF

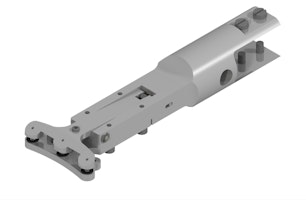

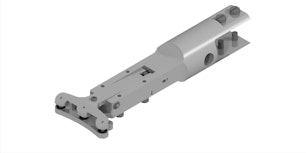

Pincer for Wafer Handling

From

4’900.00 CHF

Wafer handling tool for use with heavy-duty sample transporters.

Questions? Connect with an expert

  • This pincer is designed for seamless wafer handling with Dual-Shaft, Heavy Duty Sample Transporters. This accessory is ideal for picking a wafer up, transferring it linearly to another position, and safely parking it by gently lowering the fork. It enables direct gripping of wafers from both parking positions and storage stacks. The pincer jaws feature FKM O-rings, ensuring a secure and scratch-free grip on. Operation is effortless, requiring only a three-quarter turn of the sample transporter's outer magnet assembly to open and close the pincer.

  • Wafer Handling

    • Wafer Size: 2" - 6"
    • Gripping Mechanism: Pincer with FKM O-rings
    • Actuation: Manual, via rotation of sample transporter's outer magnet assembly (approx. ¾ turn)
    • Handling: Direct gripping from parking positions and storage stacks

    Technical Specifications

    • Materials: Stainless Steel 1.4301 (304L), CuBe2, PEEK, FKM
    • O-rings: FKM

    Vacuum & Thermal Specifications:

    • Bakeout Temperature: 200°C max.
    • Materials: Fully UHV compatible

    Dimensional Change: Increases retracted length of the main product by 78.0mm

Heavy-Duty Sample Transporter Compatibility
