UPGRADEMZ__(+MZENCLAK)-XXXX

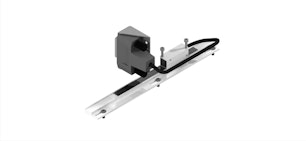

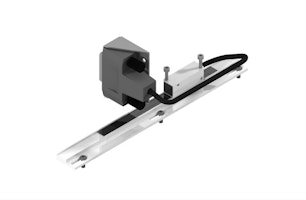

Precision Optical Position Encoder Kit for Boomerax Z-Stage
Price on Request
Ultra precise, lightweight optical encoder for Boomerax Z-stages.
Product Code Linear Measurement Range Boomerax Z-Stage Compatibility Price UPGRADEMZ40(+MZENCLAK)-XXXX 50 mm - 2000 mm DN40 Contact Ferrovac Sales UPGRADEMZ63(+MZENCLAK)-XXXX 20 mm - 1195 mm DN63 Contact Ferrovac Sales Note: Prices may vary heavily depending on how long the linear measurement range is.
Have questions about which solution works best for your application?
Contact
Connect with Ferrovac sales for expert advice.Enhance the precision of your Boomerax Z-Stage CF40 or CF63 with the Optical Encoder Kit. This high-precision encoder system provides absolute linear position feedback, ensuring sub-micrometer resolution for demanding applications.
Key Features:
- High resolution down to 78 nm without additional electronics.
- Dual absolute tracks & incremental sensors ensure high contamination resistance.
- Secure 16-pin LEMO connector with strain relief mounting bracket.
- Automatic signal adjustment with extensive analysis via ABSOFLEX software.
- Ultra-compact, lightweight scanning head.
- Easily removable for bakeout.
- Step Resolution: Down to 78 nm
- Measurement Range: Up to 2000mm, depends on product configuration.
- Sensor Head: Numerik Jena LAK1
- Encoder Scale: LAK, custom measurement range depending on product configuration.
- Interface: BiSS C
- Connector: 16-pin LEMO with mounting bracket (other options available upon request).
- Bakeability: Non-bakeable, easily removable
- Compatibility: Boomerax Z-Manipulators
