Self-Revolving Sample Carrier for 2 Flag Style Sample Plates

From

3’100.00 CHF

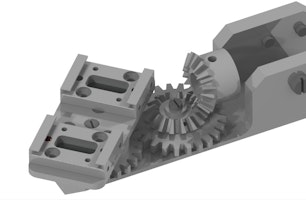

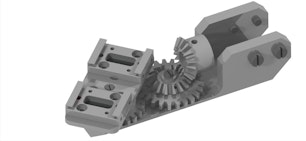

Rotation activated revolving sample carrier for heavy-duty sample transporters.

The revolving sample carrier transports and stores two Flag Style Sample Plates.
Consisting of two drawer style receivers that are accessible from opposite sides on a rotating platform, this is perfect in applications where two samples need to be accessed right after one another.
Free positioning and continuous rotation is possible.
The caroussel is activated by rotating the inner shaft of the sample transporter.
- Carrying Capacity: 2 Flag Style Sample Plates
- Receiver Orientation: 2 x 1 receiver at 180°
- Rotation Type: Free rotation, continuous
- Rotation Activation: Rotating the inner shaft of the sample transporter rotates the caroussel.
- Bakeout Temperature: Max. 200°C
- Mounting Compatibility: RMD40, RMDG40

Dual Shaft, Heavy-Duty Sample Transporter (DN40CF)
