Self-Revolving Sample Carrier for 4 Flag Style Sample Plates

From

3’300.00 CHF

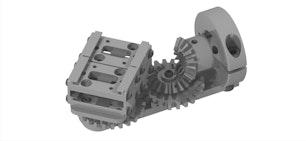

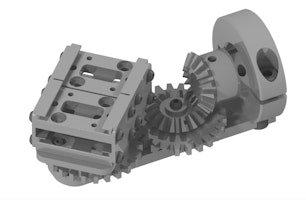

Rotation activated revolving sample carrier for heavy-duty sample transporters.

The revolving sample carrier transports and stores four Flag Style Sample Plates.
Consisting of two drawer style receiver stacks that are accessible from opposite sides on a rotating platform, this sample carrier is perfect in applications where the wobblestick is limited in it's angular deflection, but more than two sample holders need to be carried.
Free positioning and continuous rotation is possible.
The caroussel is activated by rotating the inner shaft of the sample transporter.
- Carrying Capacity: 4 Flag Style Sample Plates
- Receiver Orientation: 2 x 2 receiver at 180°
- Rotation Type: Free rotation, continuous
- Rotation Activation: Rotating the inner shaft of the sample transporter rotates the caroussel.
- Bakeout Temperature: Max. 200°C
- Mounting Compatibility: RMJ40, RMJG40
