Sample Plate with 13 Electrical Contacts & Temperature Sensor

From

2’300.00 CHF

Precision flag style sample holder with integrated temperature sensor and electrical connectivity.

Material Options:

Product Code	Material (Shield Cap & Base Plate)	Price
SHOMEC13(MO-DT)	Molybdenum	Visit UHV Store
SHOMEC13(CB-DT)	Copper-Beryllium (CuBe2)	Visit UHV Store
SHOMEC13(ST-DT)	Stainless Steel (1.4301)	Contact Ferrovac Sales

Shield Cap Window Sizes:

Standard Size	Additional Sizes (Available on Request)
6x6 mm	3x3 mm, 4x4 mm, 5x5 mm

- Direct sample temperature sensing via integrated DT-670 diode.
- Reproducible micrometer-range positioning with a snap-in mechanism
- Up to 13 electrical contacts for device connectivity

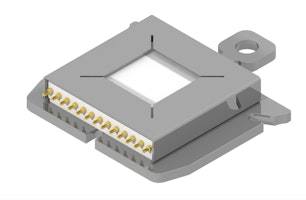

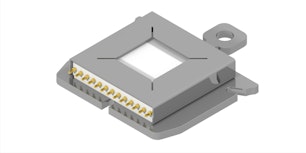

Achieve unparalleled temperature accuracy and reproducible sample positioning in your UHV experiments with the SHOMEC13(MO-DT) Sample Holder. This advanced holder integrates a DT-670 silicon diode temperature sensor directly behind the sample mounting plate, ensuring precise temperature readings where they matter most.
Its unique kinematic snap-in mechanism guarantees micrometer-level repeatability, while 13 high-quality electrical contacts facilitate complex device wiring. Constructed from high-performance materials like Molybdenum and Shapal M, this holder is designed for demanding surface science and microscopy applications.
- Positioning Mechanism: Three slits for kinematic snap-in
- Shield Cap Window Size: 6x6 mm (Other sizes available on request)
- Number of Contacts: 13
- Contact Stroke: 0.235 mm
- Materials:
  - Isolators: Shapal M (Aluminium Nitride)
  - Contacts: Copper-Beryllium (CuBe2), Gold-plated over Ni, weakly magnetic
  - Fasteners: Molybdenum (Other materials available on request)
- Integrated Sensor: DT-670 silicon diode temperature sensor
- Maximum Temperature: 180°C
- Required Receptor Assembly: RECOMEC13 or RECOMCREC13
