RECOMCREC13V2
Cryo Sample Plate Drawer with 13 Electrical Contacts
6’350.00 CHF
Cryo-optimized sample plate receiver that enables direct electrical contact to sample plate.
Product Code Housing & Shielding Material Price RECOMCREC13V2 CuBe2 and Cu-OFE, gold-plated with Ni-P CHF 6350 Details on the specifications can be found in the 'Specifications" tab below.
This receiver is available for direct purchase on the UHV store.

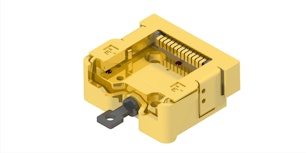

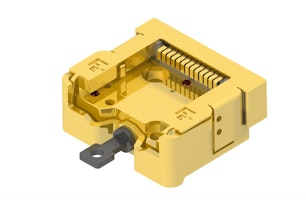

The RECOMCREC13V2 Cryo Sample Holder Drawer is specifically designed for cryogenic applications, enabling electrical measurements and temperature control of samples at extremely low temperatures. Featuring 13 electrical contacts, this holder facilitates wiring devices on flag-style sample plates, including direct measurement of sample temperature and resistive heating.
A unique lever mechanism, actuated by a wobblestick, ensures improved thermal contact to the cooling surface, minimizing temperature differentials.
Factory wiring with a preconfigured set of cables is mandatory to maintain optimal performance in cryogenic conditions.
- Number of electrical contacts: 13
- Temperature range: ~10K to 500K (lowest achievable temperature depends on the cryo-setup and thermal shielding).
- Dielectric strength between adjacent contacts: 1000V (dependent on cabling).
- Contacts glued with Epotek H20 and H70 UHV-compatible epoxy.
- Materials:
- Housing and shield caps: CuBe2 and copper Cu-OFE, gold plated
- Positioning spheres: Ruby
- Isolators: PEEK
- Contacts: CuBe2, gold plated
- Locking screw: Titanium grade 2
- Screws: Molybdenum
- Compatible Flag-Style Sample Plates :
- Actuation Requirement Options:
- Factory wiring with a preconfigured set of cables is mandatory.
