IVWCOAXEC13UNT1000

Set of 13 Coaxial Cables, Length 1000mm, unterminated

From

990.00 CHF

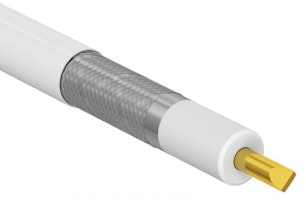

In-vacuum, copper shielded and teflon isolated coaxial cables, compatible with RECOMEC13 receivers.

Questions? Connect with an expert

  • The EC13 cable kit includes wiring and mounting 13 coax unterminated miniature coaxial cables to any kind of RECOMEC13 sample receiver.

    If used in conjuction with such a receiver, the cables are connceted to the sample receiver's electrical contacts with conductive Epoxy Epotek H20. Standard length is 1.0 meter.

    The other end of the cable is unterminated in the basic kit. Choose your preferred connector from the compatibility list below.

    • Cable Length: 1000 mm
    • Cable Diameter: OD = 0.80mm±0,04
    • Conductor Diameter: 0.15 mm

    • Resistance: 50 Ohm coaxial cable
    • Temperatur Range: 4K to 473K.
    • Operating Voltage: 150 VDC

    • Materials (all UHV compatible):
      • conductor: copper stranded wire, silver coated, twisted, 0,014 mm2, (7 x 0,050 mm)
      • dielectricum: PFA (Teflon®)
      • shield: copper braid, silver coated
      • cable jacket: PFA (Teflon®)

    Product Compatibility
