DB15 Female In-Vacuum Connector

From

820.00 CHF

In-vacuum DB15 connector, including wiring assembly, compatible with RECOMCREC13V2.

Questions? Connect with an expert

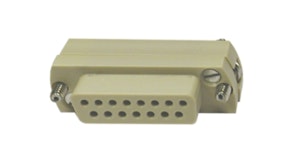

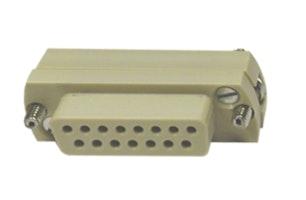

  • This in-vacuum connector piece features 15 female contacts embedded in a PEEK housing.
    The assembly of additional in-vacuum wiring is included in the price; an assembly that is usually combined with the Cryo Sample Holder Drawer with 13 electrical Contacts (Product Code RECOMCREC13V2).

    Drawing and 3D-Model: Available on the Allectra Website.

    • Body Material: Peek
    • Dimensions: 37x12.5x17.5mm
    • Temperature Range:  -50°C to 230°C

    • Number of Contacts: 15 (Female)
    • Compliance: Sub-D, DIN 41652, MIL-C-24308

    • Manufacturer: Allectra
    • Included Accessories: Crimp and push connectors

    Product Compatibility
