EFCF40DSUB15

DB15 Electrical Feedthrough

From

590.00 CHF

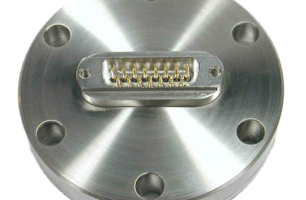

A DN40CF electrical feedthrough with a 15 pin D-Sub connector built-in.

Questions? Connect with an expertBuy at UHV store

  • This in-vacuum connector piece features 15 female contacts embedded in a PEEK housing.
    The assembly of additional in-vacuum wiring is included in the price; an assembly that is usually combined with the Cryo Sample Holder Drawer with 13 electrical Contacts (Product Code RECOMCREC13V2).

    Drawing and 3D-Model: Available on the Allectra Website.

    • Flange Size: DN40CF
    • Manufacturer: Allectra
    • Compliance: Sub-D, DIN 41652

    • Temperature range: -200°C to 230°C
    • Leak rate: <5x10-10 mbar-l/s He

    • Feedthrough Socket:
      • Pin diameter: 1.0mm
      • Number of pins: 15
      • Max. current: 5A per pin
      • Continuous current: 3A per pin, all pins connected

    • Materials:
      • Pins: NiFe, (Au plated)
      • Seal: Glass ceramic
      • Flange: Stainless steel 316L
