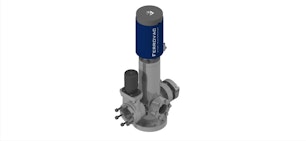

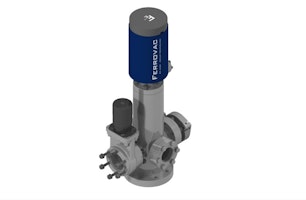

Fast Pump Down Dock with LN2 Dewar UHV Booster CF40

• Description

  • Rapid UHV pumpdown (~30 minutes) for minimal downtime.
  • LN2 cryogenic cooling enables faster pump-down speeds.
  • Built-in resistive heater for quick warm-up cycles.

  The VSCTDH40 Transfer Chamber enables ultra-fast sample transfer from a portable UHV-Suitcase to a UHV system, significantly reducing pumpdown time. Utilizing both cryogenic (LN2) and turbo pumping, it achieves UHV conditions (~1E-8 mbar) within 30 minutes, eliminating the need for a 24-hour bakeout.

  Note: A Turbo pump is not included.

• Specifications

  • Connection Port: DN40CF, gate valve included
  • Mounting Flange: DN40CF (2.75")

  • Performance:
    • Pumpdown Time: ~30 minutes to ~1E-8 mbar
    • Cooling Temperature: down to ~80K
  • LN2 Dewar:
    • ~0.5lt filling volume
    • Vacuum isolated
    • thermal insulating sleeve and dewar lid included
  • Heat Exchanger: Aluminium cooling blocks with OFHC core

  • Built-in Heater:
    • Resistive heater type
    • PT100 temperature sensor included
  • Electrical Feedthrough: DN16CF, 6-pin feedthrough
    • Air-side connector included
  • Vacuum Pump: Turbo pump not included
