TSRMBS-XXXX-YYYY

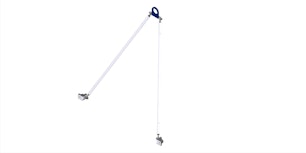

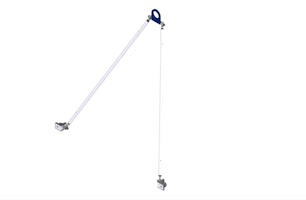

Heavy-Duty Tube Support
1’400.00 CHF
Manually adjustable air-side support structure for heavy-duty sample transporters.
Customization Range for Support Tubes:
Order Code: TSRMBS-XXXX-YYYY- XXXX: Length of the left shaft (50mm to 1800mm)
- YYYY: Length of the right shaft (50mm to 1800mm)
Distance Measurement: From pivot point to pivot point of the two ball joints on the same shaft
Ensure precise alignment and robust support for your sample transporters with our Heavy-Duty Tube Support. Designed with 16mm OD pivot-mounted alignment shafts, this support system provides both linear and angular adjustments, making it ideal for maintaining the proper alignment of sample transporter axes. Additionally, it safeguards against accidental bending, ensuring reliable and long-lasting performance.
- Shaft Diameter: 16mm OD
- Alignment Adjustment: +/- 10mm
- Mounting: Brackets with holes for M8 screws
Sample Transporter Compatibility
Heavy-Duty Sample Transporter (DN40CF)
RM40-XXXX-YYYY
From3’500.00 CHF
Dual Shaft, Heavy-Duty Sample Transporter (DN40CF)
RMJ40-XXXX-YYYY / RMD40-XXXX-YYYY
From5’300.00 CHF
Dual Shaft, Dual Rotary, Heavy-Duty, Sample Transporter (DN40CF)
RMJG40-XXXX-YYYY / RMDG40-XXXX-YYYY
From6’300.00 CHF
Hollow Shaft, Heavy-Duty Sample Transporter (DN40CF)
RMHS40-XXXX-YYYY
From10’900.00 CHF
