UPGRADEMXY___(+MXYFS__)

Load Compensation Upgrade for Boomerax XY Stage (One Axis)

From

321.00 CHF

Increased Precision and Stability for Heavy Loads.

Questions? Connect with an expert

  • The Load Compensation upgrade is available for all Boomerax XY models.

    Product CodeLoad ReliefMax. BakeoutBoomerax XY CompatibilityPrice
    UPGRADEMXY40(+MXYFS22)22N150°CDN40CHF 321
    UPGRADEMXY63(+MXFS47)47N200°CDN63CHF 870
    UPGRADEMXY100(+MXYFS74)74N200°CDN100CHF 870

    Have questions about which solution works best for your application?
    Connect with Ferrovac sales for expert advice.

    Contact

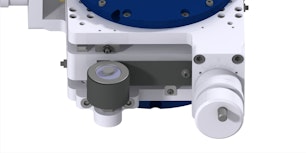

  • This load compensation upgrade for the Boomerax XY-Stage is designed to enhance the precision and ease-of-operation for one axis when handling heavy loads.

    A constant force spring reduces strain on the stage, enabling a more stable movement across all compatible models.

    • Material: Stainless steel
    • Load Relief: Varies depending on size of XY-Stage.
      • DN40CF: 22N
      • DN63CF: 47N
      • DN100CF: 74N
    • Bakeout Temperature: Varies depending on size of XY-Stage.
      • DN40CF: 150°C
      • DN63CF & DN100CF: 200°C

    Boomerax Compatibility
