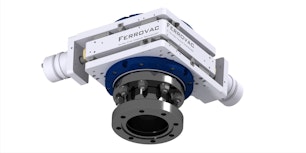

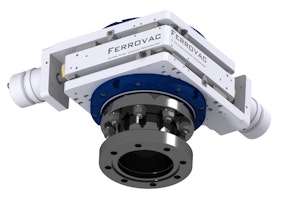

Through Hole Adapter with Rotateable Flange

• Product Configurations

  Product Code	Mounted Flange	Rotatable Flange	Free Bore	Insertion Length	Type	Price
  UPGRADEMXY40(+STCF40CF40RL50)	DN40CF (2.75")	DN40CFR (2.75")	38mm	50mm	Straight	CHF 390
  UPGRADEMXY40(+RNCF63CF40RL50)	DN63CF (4.5")	DN40CFR (2.75")	38mm	50mm	Reducing	CHF 290
  UPGRADEMXY63(+STCF63CF63RL70)	DN63CF (4.5")	DN63CFR (4.5")	66mm	70mm	Straight	CHF 390
  UPGRADEMXY63(+RNCF100CF63RL70)	DN100CF (6")	DN63CFR (4.5")	66mm	70mm	Reducing	CHF 540
  UPGRADEMXY100(+STCF100CF100RL70)	DN100CF (6")	DN100CFR (6")	100mm	70mm	Straight	CHF 590
  UPGRADEMXY100(+RNCF160CF100RL70)	DN160CF (8")	DN100CFR (6")	100mm	70mm	Reducing	CHF 690

• Description

  Through Hole Adapter Series
  Enables MXY module mounting without a tapped base flange and provides a rotatable connection flange.

  The Through Hole Adapter series provides a solution for mounting MXY modules in applications where a tapped base flange is not feasible, or wherever a rotatable connection flange is necessary for bolt alignment.

• Specifications

  Insertion Length: 50mm - 70mm, depends on product configuration (see above).

  Flange Type: CF (Conflat), sizes DN40 to DN100

  Material: Stainless steel 1.4301 (AISI 304)
