LSA3.1

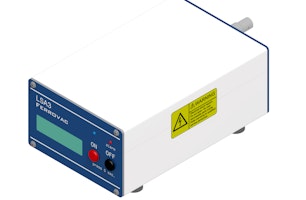

Battery Powered Ion Pump Controller V3

From

5'480.00 CHF

  • Independent operation via integrated rechargeable battery
  • Stable high-voltage output up to +5 kV
  • Real-time pressure indication based on ion pump current, calibrated for SAES NexTorr ion pumps
  • Pt100 temperature input for cryogenic applications
  • Compact and robust aluminium housing for portable use
  • USB interface for data acquisition and remote monitoring
  • Acoustic alarm for low battery and high temperature
Questions? Connect with an expert

  • The LSA3.1 is a rechargeable, battery-powered high-voltage controller designed for the operation of ion pumps in mobile and compact ultra-high vacuum (UHV) systems. It is particularly suited for integration into UHV suitcases and other portable vacuum setups where no permanent power supply is available.

    The unit provides a +5 kV positive output and is configured for diode ion pumps. It includes an integrated pressure display calibrated for SAES NexTorr™ pumps, allowing direct readout of vacuum levels in mbar.

    A Pt100 temperature input enables monitoring of cryogenic applications, such as LN2-cooled sample stages. The controller also features an acoustic alarm to indicate low battery conditions or elevated temperatures. With a typical operating time of approximately 45 hours (depending on operating conditions), the LSA3.1 supports extended mobile use. A USB interface allows readout of operational parameters, including pump current, pressure, temperature and battery status.

    • Battery type: NiMH rechargeable (UN 3496 Not Restricted)
    • Operating time: approx. 45 h at 5 µA load (e.g. D100-5 at ~1×10⁻⁷ mbar)
    • Output voltage: +5 kV DC
    • Maximum current: 20 µA
    • Temperature measurement (Pt100):
      • Range: −200 °C to +150 °C
      • Accuracy: ±2.5 °C
      • Connector: Binder Series 719, 4-pin (male)
    • Display:
      • Pressure: mbar (calibrated for NexTorr™ D100-5 / D200-5)
      • Temperature: °C (Kelvin available on request)
    • Interfaces:
      • USB serial interface for: Ion pump current, Pressure, Sensor temperature, Battery voltage, High-voltage control (on/off)
    • Alarms:
      • Low battery (acoustic)
      • High temperature (acoustic)
    • Physical properties:
      • Weight: 1.2 kg
      • Dimensions (H × W × D): 64.5 × 105 × 164.5 mm
