MZLIMELKIT2

Limit Switch Kit for Boomerax Z-Stage

From

448.00 CHF

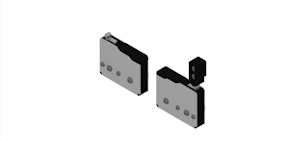

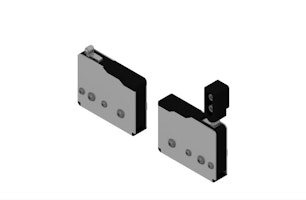

One-axis electrical end-stop switch for use with Boomerax manipulators.

Questions? Connect with an expert

  • A one-axis electrical limit switch kit designed to complement Boomerax Z-Stage motorization kits by enhancing safety through travel restriction within the designated range.

    It features two adjustable stop positions (expandable on request) and operates reliably in high-temperature environments, being fully bakeable up to 150°C.

    Plugs and cables for custom wiring are not included.

    • Electrical Limit Switches:
      • Quantity of Adjustable Positions: Two (expandableon request)
      • Configuration: Normally closed or normally open (3-wire)
      • Maximum Voltage: 250 VAC / 24 VDC
      • Maximum Continuous Current: 16A
      • Operating Temperature Range: -40°C to +150°C

    • Wiring & Connectivity:
      • Cable Length: 1.5m
      • Wire Ends: Open for flexible wiring
      • Included Plugs: 2x Amphenol C091B plugs (not bakeable)

    Boomerax Compatibility
