MZS___-XXXX-YYYY

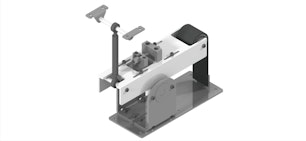

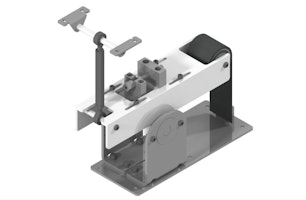

Load Compensation Upgrade for Boomerax Z-Stage

Price on Request

Airside support for horizontally mounted Boomerax Z-Stages.

Questions? Connect with an expert

  • Available in two versions, the MZS allows you to choose the ideal support force for your specific setup:

    • MZS74 (74N Version) – Supports medium-weight loads.
    • MZS147 (147N Version) – Designed for heavier applications.
    FeatureMZS74 (74N Version)MZS147 (147N Version)
    Product CodeMZS74-XXXX-YYYYMZS147-XXXX-YYYY
    Effective Adjustable Support Force81N – 156N (8.3 kg – 16.2 kg)165N – 290N (16.8 kg – 29.6 kg)
    Support Height (X)279mm – 1219mm279mm – 1219mm (standard 280mm)
    Support Width (Y)36mm – 524mm36mm – 524mm
    Installation HeightConfigurableConfigurable
    Price (CHF)Contact Ferrovac SalesContact Ferrovac Sales

  • The MZS74 Load Compensation Upgrade is designed to compensate for the weight of your horizontally mounted Boomerax Z-stage. By providing consistent support force across for the manipulator, regardless of it's position, this support improves precision and reduces strain on mechanical components.

    Boomerax Z-Stage Compatibility
