Support Trolley for Suitcase Docking

From

17’640.00 CHF

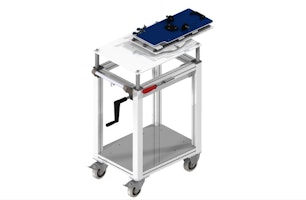

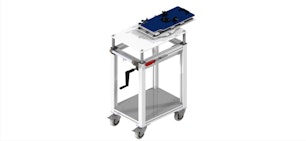

Universal docking trolley for safe and fast docking of UHV suitcases.

- Quick Docking: Rapidly dock your UHV Suitcase to accessible ports.
- Precise Height Adjustment: Adjust the height within a 300 mm range using a hand crank and four hydraulic pistons.
- Rotating Platform: Enables precise alignment of the UHV suitcase with your docking flange.
- Exceptional Stability: Built with high-quality aluminum profiles for long-lasting performance.
The Support Trolley is designed to provide a stable and maneuverable platform for docking your UHV suitcase to accessible ports. Featuring a height-adjustable design, rotating platform, and robust construction, this trolley ensures accurate positioning and alignment for a wide range of instruments and laboratory set-ups.
General Dimensions:
- Height to platform: 840 mm
- Length: 550 mm
- Width: 410 mm
Adjustable Axes:
- Vertical (Z-axis):
  - Stroke: 0 - 300 mm (Hydraulic Cylinder)
  - Actuation: Detachable hand crank
  - Height stability: ±0.2 mm (±4°C max temperature variation)
- Rotation: 360° (Slewing Ring Ball Bearing)
- Horizontal (X-axis): 97 mm travel (High-Precision Linear Ball Bearing Guide Rails)
Docking Adjustments:
- Tilt Angle:
  - Upward: 2.5°
  - Downward: 3.0°
- Maximal Overhang with Suitcase (to KF Flange):
  - Straight: 345 mm
  - Perpendicular: 300 mm
Suitcase Compatibility:
- Maximum UHV Suitcase Weight: 20 kg
- Secure locking mechanism to platform

UHV Suitcase Package
