MOTN__T_.__-XXXX

Boomerax Stepper Motor Kit

From

650.00 CHF

Mountable stepper motor upgrade.

Questions? Connect with an expert

  • Product CodeStepper Motor SizeMax TorqueBoomerax CompatibilityPrice
    MOTN14T0.23-XXXXNEMA 14 (35x35mm)0.23NmMXY40650 CHF
    MOTN17T0.7-XXXXNEMA 17 (42x42mm)0.7NmMZ40, MXY63, MZ63670 CHF
    MOTN23T1.9-XXXXNEMA 23 (47x47mm)1.9NmMZ63, MXY100, MZ100, MZ160760 CHF
    MOTN24T3-XXXXNEMA 24 (60x60mm)3NmMZ63, MZ100, MZ160880 CHF
    MOTN24T3.6-XXXXNEMA 24 (60x60mm)3.6NmMZ63, MZ100, MZ160950 CHF

    Have questions about which solution works best for your application?
    Connect with Ferrovac sales for expert advice.

    Contact

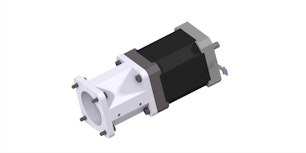

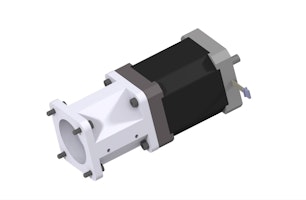

  • The Stepper Motor Kit is designed for seamless integration with Boomerax series XY, Z, or rotation modules. Each kit includes a high-quality Nanotec® stepper motor and all necessary mechanical components for precise motorization.
    The XXXX value in the product code specifies the diameter of the coupling shaft, which is factory-configured to match the designated module.

    When paired with an appropriate controller operating in microstepping mode, these stepper motors enable high-resolution positioning down to the nanometer scale.

    • Precision Motorization – Nanotec® stepper motors enable nanometer-scale positioning with microstepping.
    • Seamless Integration – Factory-configured for Boomerax XY, Z, and rotation modules.
    • Model-Specific Compatibility – Torque range 0.23Nm–3.6Nm, matched to Boomerax Stage models.

  • Boomerax compatibility is listed in the product configuration above.
    Motor specifications for each available motor are listed in the table below:

    SpecificationMOTN14T0.23-XXXXMOTN17T0.7-XXXXMOTN23T1.9-XXXXMOTN24T3-XXXXMOTN24T3.6-XXXX
    Stepper Motor SizeNEMA 14 (35x35mm)NEMA 17 (42x42mm)NEMA 23 (47x47mm)NEMA 24 (60x60mm)NEMA 24 (60x60mm)
    Motor Length52mm (105mm incl. adapter)60mm (115mm incl. adapter)76mm (129mm incl. adapter)88mm (154.5mm incl. adapter)111mm (187mm incl. adapter)
    Max Torque0.23Nm0.7Nm1.9Nm3Nm3.6NM
    Holding Torque0.23Nm80Ncm132Ncm250Ncm283Ncm
    Resolution1.8°/step1.8°/step1.8°/step1.8°/step1.8°/step
    Connecting Shaft-Ø5mm - 16mm5mm - 16mm 5mm - 16mm5mm - 16mm5mm - 16mm
    Operating Temp.-10°C to 50°C-10°C to 50°C-10°C to 50°C-10°C to 50°C-10°C to 50°C
    BakeableNoNoNoNoNo
    Controller Included?NoNoNoNoNo
